Model PC2200

Features PC2200 Unit

  • Easy do-it-Yourself Calibration
  • SuperCount® Software with "Auto-Mode"
  • Compact & Portable
  • Quickly Counts & Sizes
  • No Cross-contamination of Flow Lines
  • Eliminates Sample Flushing

Operation Theory

Utilizing the principle of "near angle light scatter", a revolving laser beam passes through the walls of a glass container of a flow-thru cell. When it is directed through a central "sensitive zone" the PC-2200 not only counts the particles in suspension, but tabulates their size as well. The analog signals generated by the light pulses are routed to a computer and digitized.

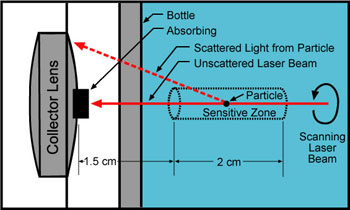

Optical Schematic of the Laser Particle Counter
Optical Schematic of the Laser Particle Counter

Spectrex provides three sealed calibration standards with each unit. Each standard contains a precise number of NIST traceable polystyrene spheres of known size in suspension and are sealed with inert Argon gas. These standards have a proven stability of more than 10 years and provide efficient calibration within 10 minutes.

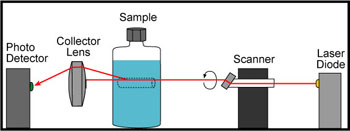

Optical Schematic of the Laser Particle Counter
Detailed Laser Optics
  • Water Treatment Plants
  • University Laboratories
  • Pharmaceutical Manufacturers
  • Oil Refineries and On-site drilling
  • Bottling & Beverage Operations
  • Oceanographic Studies
  • Hydraulic Fluids and Oil QC
  • Liquid Chromatography Solvent QC
  • Cooling Tower and Waste Water Filter Efficiency
  • Particle Agglomeration Studies
  • Silts and Sediment Sizing
  • Particle Settling Characteristics
  • Corrosive Chemical and Solvent Sizing
  • Vial and Ampule Inspection
  • De-ionized Water and Acid Testing
  • Cell Counting


Developed by Spectrex, the custom interfacing electronics and proprietary software provide an easy means of analyzing and saving data generated by the PC-2200. SuperCount provides instant sizing information and histogram of size distribution in addition to indicating:

  • Absolute Counts
  • Mean Size
  • Mass Distribution
  • Percentage Distribution
  • Standard Deviation
  • Total Suspended Solids

The dilution factor can be automatically computed to give absolute count for liquids as dense as sludge! SuperCount also is loaded with a special bonus program for hydraulic fluids* and Phi classifications.

  • Opacity Meter - provides an instantaneous measurement of the sample's opacity to correlate with computer calculations.
  • Small Vial Attachment - for use with 5ml vials or ampules.
  • Magnetic Stirrer - built into the PC2200 when ordered, eliminates selting by inducing a constant motion of the sample.
  • Flow-Thru Cell - Spectrex stocks various sizes of flow-thru cells and can manufacture cells to customer specifications. Cells are also available for testing at high pressure and temperatures.

  • Size: 4.75 " x 14 " x 4.5 " (height with Light Tight Cover is 5 ")
  • Typical bottle size: 15-60 mm inside diameter
  • Bottle Material: transparent, scratch-free glass
  • Weight: 6 lb.
  • Power: 115v 60Hz (230v optional)
  • Detectable Particle Size: from 0.5µm - 100µ

Some Users of the Spectrex Laser Particle Counter
  • Domestic Users
  • International Users
  • Geology, Oceanography and Sedimentology
  • Oil Industries
  • Pharmaceutical And Biomedical Institutions
  • Semiconductor, Disc Drive and Clean Solvent Industries
  • Army/Navy/Air Force Bases
  • Water Treatment/Pollution

For more information, including pricing, please contact Continental Hydrodyne Systems.
